1062SBFS-X.XX (1-1/16" Bore)
Purchase 1062SBFS-X.XX (1-1/16" Bore)
SKU: 1062SBFS
1062SBFS-X.XX (1-1/16" Bore)
Unit Price
$41.25
Stroke Selection:
0.50" Stroke +$4.80
1.00" Stroke +$4.80
1.50" Stroke +$9.60
2.00" Stroke +$9.60
2.50" Stroke +$14.40
3.00" Stroke +$14.40
3.50" Stroke +$19.20
4.00" Stroke +$19.20
Bumper Option:
No Bumpers
(-32) With Bumpers (200°F max) +$4.95
Selected Seal Material:
Standard Buna N
(-31) Fluoroelastomer (FKM) +$8.20
Lubrication Type:
Standard Oil
(-6) Magnalube Grease (included with -31 FKM seals) +$0.75
Magnalube Grease
Logo Options:
Standard With Logo
(-7) Omit Logo +$1.25
Rod End Options:
Standard Rod End - 5/16-24UNF
(-9) Omit Threads & Flats
(-91) UNC Coarse Rod Threads - 5/16-18UNC +$2.70
Rear Head Options:
Standard Rear Head (port in-line)
(-38) Side Port Rear Head +$2.10
Qty
Description

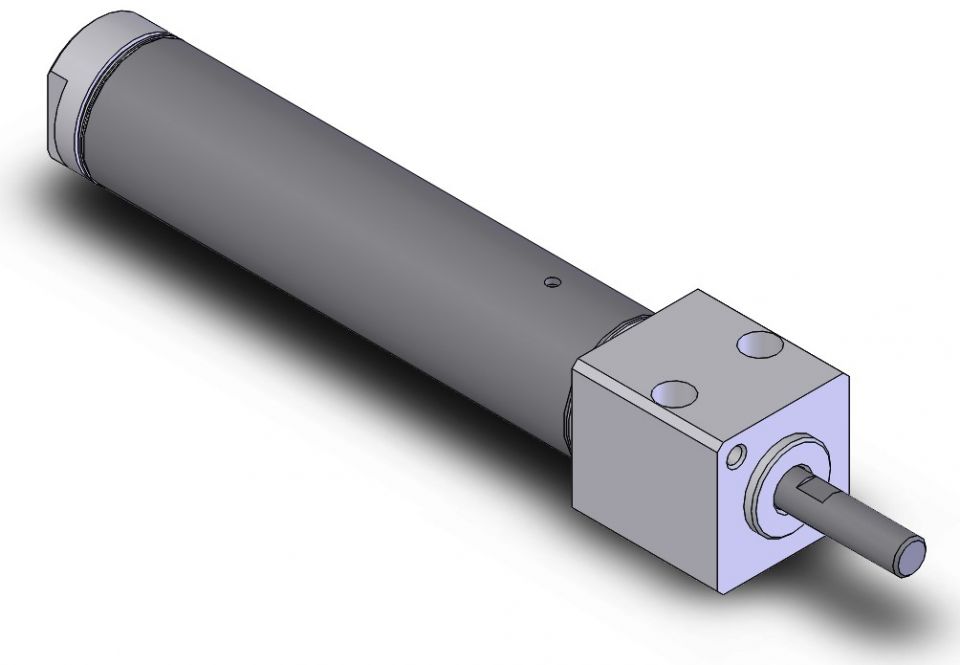

1-1/16" BORE SINGLE ACTING BLOCK FRONT MOUNT AIR CYLINDER
- 1/4-20 BOTTOM TAPPED MOUNTING HOLES
- #10-32 FACE TAPPED MOUNTING HOLES
- #10 THRU MOUNTING HOLES
- 5/16-24 ROD THREADS
STANDARD
- 1/8 NPT PORT
