1500SBFS-X.XX (1-1/2" Bore)
Purchase 1500SBFS-X.XX (1-1/2" Bore)
SKU: 1500SBFS
1500SBFS-X.XX (1-1/2" Bore)
Unit Price
$71.90
Stroke Selection:
0.50" Stroke +$7.20
1.00" Stroke +$7.20
1.50" Stroke +$14.40
2.00" Stroke +$14.40
2.50" Stroke +$21.60
3.00" Stroke +$21.60
3.50" Stroke +$28.80
4.00" Stroke +$28.80
Bumper Option:
No Bumpers
(-32) With Bumpers (200°F max) +$6.00
Selected Seal Material:
Standard Buna N
(-31) Fluoroelastomer (FKM) +$9.75
Lubrication Type:
Standard Oil
(-6) Magnalube Grease (included with -31 FKM seals) +$0.75
Magnalube Grease
Logo Options:
Standard With Logo
(-7) Omit Logo +$1.25
Rod End Options:
Standard Rod End - 7/16-20UNF
(-9) Omit Threads & Flats
(-91) UNC Coarse Rod Threads - 7/16-14UNC +$2.70
Rear Head Options:
Standard Rear Head (port in-line)
(-38) Side Port Rear Head +$2.10
Qty
Description

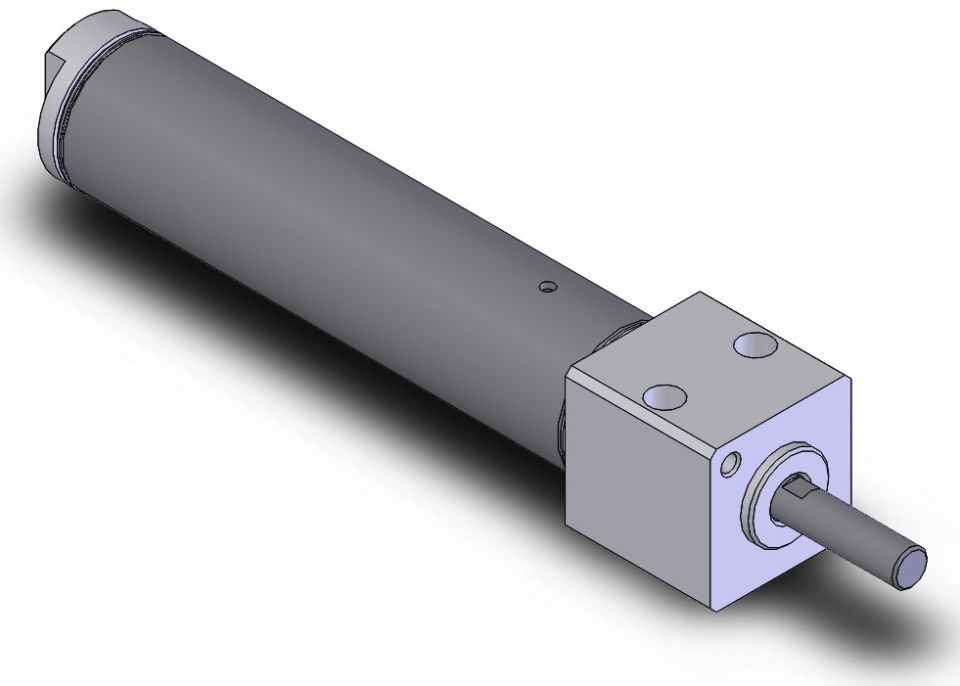

1-1/2" BORE SINGLE ACTING BLOCK FRONT MOUNT AIR CYLINDER
- 5/16-18 BOTTOM TAPPED MOUNTING HOLES
- 1/4-20 FACE TAPPED MOUNTING HOLES
- 1/4" THRU MOUNTING HOLES
- 7/16-20 ROD THREADS
STANDARD
- 1/4 NPT PORT
