TR Series NFPA 6" Bore Single Std. Rod
Purchase TR Series NFPA 6" Bore Single Std. Rod
SKU: TR-Sxxx-6xX_XX-Sxxxxx

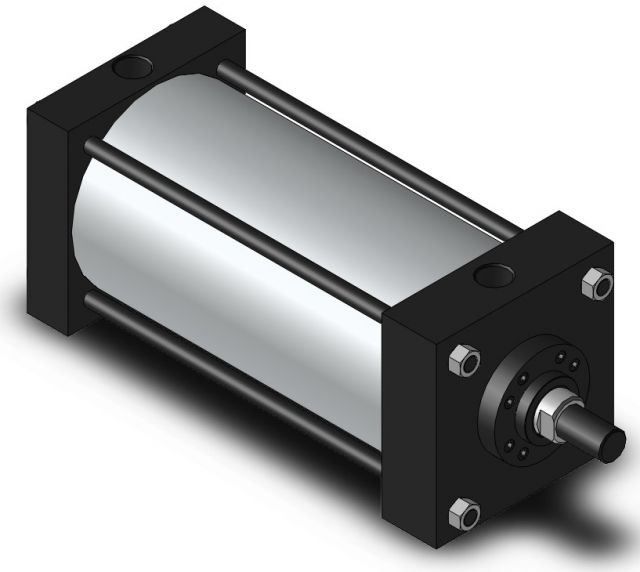

TR Series NFPA 6" Bore Single Std. Rod
Unit Price
$572.00
Mounting Style:
(MX0) Basic (No Mount) +$21.25
(MF1) Front Flange
(MF2) Rear Flange +$44.20
(MS4) Bottom Tap +$44.20
(MP1) Fixed Clevis +$52.00
(MT1) Head End Trunnion +$97.75
(MT2) Cap End Trunnion +$97.75
(MX1) Extended Tie Rods Both Ends +$21.25
(MX2) Extended Tie Rods Cap End +$21.25
(MX3) Extended Tie Rods Head End +$21.25
Stroke:
1" stroke +$15.80
2" Stroke +$31.60
3" Stroke +$47.40
4" Stroke +$63.20
5" Stroke +$79.00
6" Stroke +$94.80
7" Stroke +$110.60
8" Stroke +$126.40
10" Stroke +$158.00
12" Stroke +$189.60
14" Stroke +$221.20
16" Stroke +$252.80
18" Stroke +$284.40
20" Stroke +$316.00
22" Stroke +$347.60
24" Stroke +$379.20
Rod Thread:
(1) Small Male (1-14 UNF)
(2) Intermediate Male (1-1/4-12 UNF)
(3) Small Female (1-14 UNF)
(4) Full Male (1-3/8-12 UNF)
(5) Blank End
(6) Rod Stud (1-14 UNF)
Seal Material/Design:
(B) Buna
(V) Fluoroelastomer (FKM) +$167.55
(P) Poly-Pak +$48.85
(E) Bumper +$202.10
Cushions:
(N) None
(H) Head End Only +$42.60
(C) Cap End Only +$42.60
(B) Both Ends +$85.20
(H) Head End Only +$95.55
(C) Cap End Only +$95.55
(B) Both Ends +$191.05
(U) Urethane Bumpers +$103.65
Piston Style:
(1) Standard
(2) Magnetic +$28.60
(3) Air/Oil +$18.30
Port Size:
(S) Standard (1/2 NPT)
(O) Oversized (3/4 NPT)
Qty
Description
6" BORE NFPA AIR CYLINDER - TR
SERIES
- SINGLE END ROD WITH STANDARD 1.375" DIAMETER
Related Products
FRE-3 (1"-14 UNF)
$60.60
RC-3 (1"-14 UNF)
$71.60
RC-4 (1-1/4-12 UNF)
$108.80
AC-1000 (1"-14 UNF)
$158.45
CP-3 (1.00" Dia.)
$20.20
RS-6200 Reed Switch Open Leads
$38.35
RS-6200-QD Reed Switch M8 Quick Disconnect
$42.40
SS-6200N NPN Switch Open Leads
$41.25
SS-6200P PNP Switch Open Leads
$41.25
SS-6200N-QD NPN Switch M8 Quick Disconnect
$45.30
SS-6200P-QD PNP Switch M8 Quick Disconnect
$45.30
CP-4 (1.37" Dia.)
$34.55
