1062DVS-X.XX (1-1/16" Bore)
Purchase 1062DVS-X.XX (1-1/16" Bore)
SKU: 1062DVS
1062DVS-X.XX (1-1/16" Bore)
Unit Price
$34.85
Stroke Selection:
0.50' Stroke +$2.85
1.00" Stroke +$2.85
1.50" Stroke +$5.70
2.00" Stroke +$5.70
2.50" Stroke +$8.55
3.00" Stroke +$8.55
3.50" Stroke +$11.40
4.00" Stroke +$11.40
4.50" Stroke +$14.25
5.00" Stroke +$14.25
6.00" Stroke +$17.10
8.00" Stroke +$22.80
10.00" Stroke +$28.50
12.00" Stroke +$34.20
18.00" Stroke +$51.30
24.00" Stroke +$68.40
Selected Seal Material:
Standard Buna N
(-31) Fluoroelastomer (FKM) +$18.60
Wiper Options:
No Wiper Seal
(-5) Buna Quad-X Wiper Seal +$5.50
(-5)(-31) FKM Quad-X Wiper Seal +$8.00
Lubrication Type:
Standard Oil
(-6) Magnalube Grease (included with -31 FKM seals) +$0.75
Magnalube Grease
Piston Seal Design:
Standard U-Cup Seals
(-51) Buna N Quad-X Seal +$3.90
Bumper Option:
No Bumpers
(-32) With Bumpers (200°F max) +$6.75
Rear Pivot Options:
Standard With Pin
(-2) Omit Pivot Pin (Rear Bushing)
(-3) Full Diameter Rear Stud
Logo Options:
Standard With Logo
(-7) Omit Logo +$1.25
Rod End Options:
Standard Rod End - 5/16-24UNF
(-9) Omit Threads & Flats
(-91) UNC Coarse Rod Threads - 5/16-18UNC +$2.70
1/8" Additional Rod Extension:
No
(-1) Yes
Port Options:
Standard Location (in-line with pin)
(-33) Rotated 90° to Pin
Qty
Description

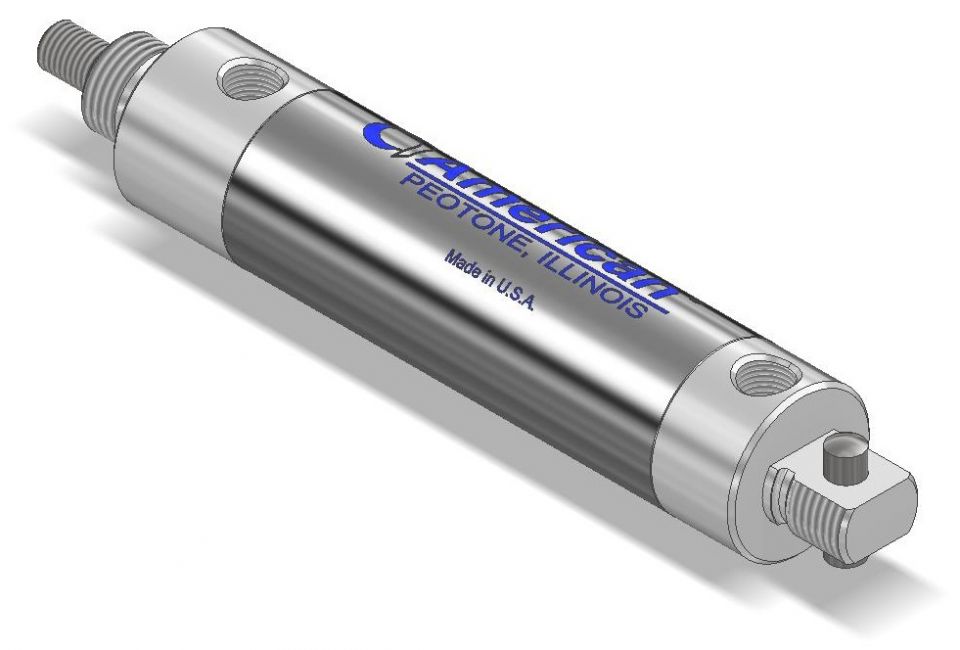

1-1/16" BORE DOUBLE ACTING AIR CYLINDER - STAINLESS STEEL SERIES - UNIVERSAL MOUNT
- 5/8-18 MOUNTING THREADS
- 0.25" DIAMETER PIVOT PIN
- 5/16-24 ROD THREADS
STANDARD
- 1/8 NPT PORTS
