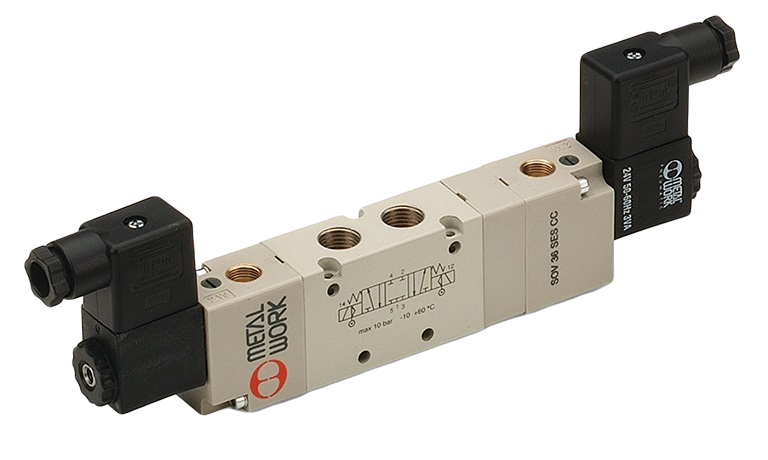

Series 70 Pneumatic Valves

The Series 70 pneumatic valves from our sister company Metal Work USA offer a wide range of options to meet your automation requirements.  Featuring a heavy-duty construction, they are available in 1/8”, 1/4”, 3/8” and 1/2” NPT sizes with 3/2, 5/2, 5/3 configurations. Single and Double solenoid options are available. They can be installed in-line or in-series via a modular base. 70 Series valves comply with multiple industry standards including Atex, ISO13489, and SIL (certificates available online).

70 Series Valves

CONSTRUCTION AND FEATURES

  • Valve Body: Heavy Duty Die-Cast Aluminum
  • End Caps: Composite
  • Spool: Nickel-plated Aluminum
  • Springs: Steel
  • Temp Range: 14°F - 140°F
  • Seals/Gaskets: NBR
  • Pistons: Hostaform®
  • Filter: Sintered Bronze
  • Operator: Brass w/Stainless Steel Core
  • Max Pressure: 145psi

Click to learn more about our product specifications

70 Series Valve CAD Configurator
