Syntesi Series FRL

Home Products Syntesi Air Prep (FRL)

Air Prep Filter, Regulator & Lubricator Units

The Syntesi Series FRL from our sister company Metal Work USA offers a wide range of options to meet your air preparation requirements.

Featuring a modular construction, they allow for an unmatched flow rate when compared to competitor offerings of the same sizes. Available with 1/8”, 1/4”, 3/8”, 1/2”, 3/4", and 1" NPT sizes in two size ranges, these units use modular port fittings that can be changed if your porting requirements change.

Individual component offerings include but are not limited to: Air Filters, Regulator, Lubricator, Filter/Regulator combinations, Coalescing Filters (depurators), Progressive Start Valves, Shut-off Valves, and much more. Standard and Anti-Corrosion versions of each component are available as well. Designed for use with compressed air or other inert gases.

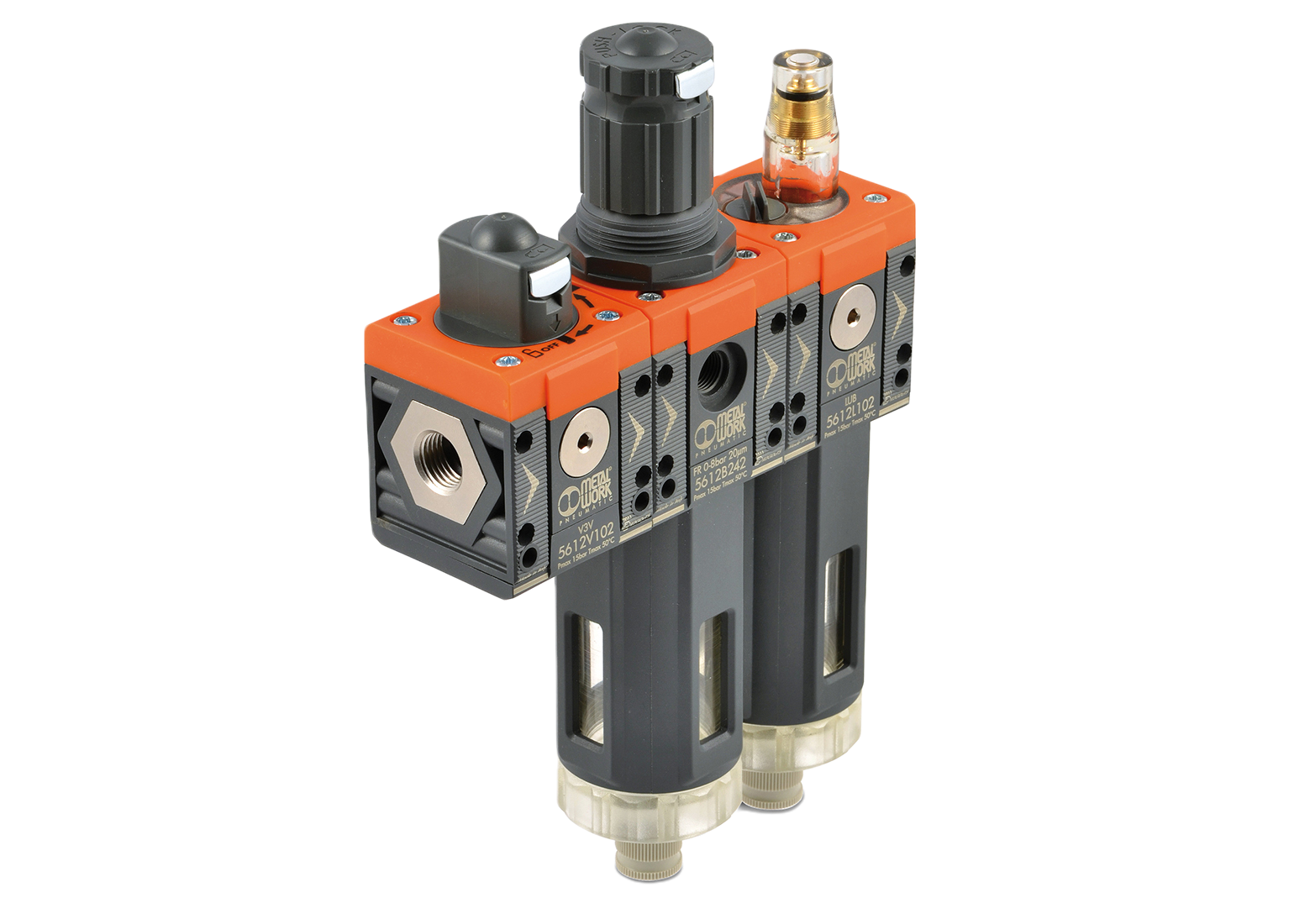

Syntesi Series FRL

CONSTRUCTION AND FEATURES

  • Body: Technopolymer
  • Port Insert: Nickel-Plated Brass or Passivated Aluminum
  • Gauge Ports: 1/8 BSPP (size 1) or 1/4 BSPP (size 2)
  • Bowls: Clear Technopolymer
  • Temp Range: 14°F - 122°F
  • Seals/Gaskets: NBR
  • Springs: Steel/Stainless Steel
  • Filter: Sintered Bronze 5-50 micron
  • Operators: Brass w/Stainless Steel Core
  • Max Pressure: 145psi

Click to learn more about our product specifications

Syntesi FRL CAD Configurator
