MSP Series

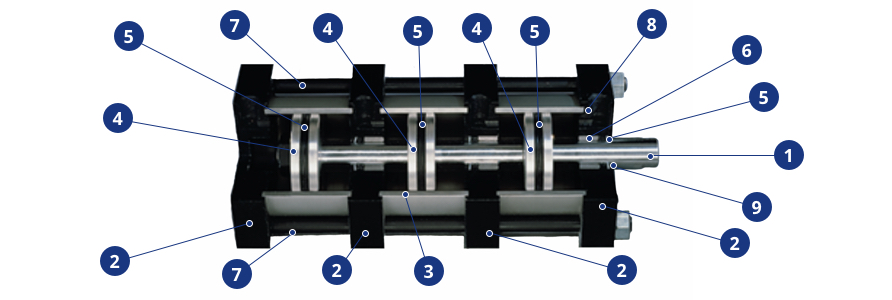

STANDARD FEATURES AND BENEFITS

1

Hard Chrome-Plated & Polished Piston Rod

Minimum yield of 100,000 PSI. High tensile strength steel provides for reliable performance and longer rod seal life.

2

Solid Anodized Aluminum Alloy Heads:

Designed for corrosion resistance and extra strength.

3

Aluminum Alloy Tube 6063-T832

PSI of 35,000. Hard coated I.D. resists scoring and wear.

4

Aluminum Alloy Piston

Provides excellent characteristics against the hard coated I.D. cylinder body.

5

Seals

Piston and rod seals are of Quad-Ring design to provide for low dynamic friction and positive sealing. O-Ring or U-Cup piston seals are available in 11/2" thru 5" bores. (6" & 8" bores are standard with UCup piston seals.)

6

Cast Iron Rod Bushing

Compatible with the hard chrome plated rod. Close grain cast iron bearing provides maximum wear resistance for long life.

7

Tie Rods

High strength steel to maintain compression on tube end seals.

8

Tube End Seals

Fiber and nitrile base elastomer acting as a binder for positive sealing.

9

Teflon Back-Up Washer

Wipes the rod clean and keeps out contamination.

10

Factory Lubricated

Cylinder bodies are lubricated with Teflon-based compound.

11

Pretested

The quality of each cylinder is assured by testing each unit for leakage prior to shipment. Quality control provides added value to American Cylinders.
