NFPA Approved Tie Rod Cylinders

Home Products Tie Rod Cylinders TR Series: NFPA Interchange

TR Series: NFPA Interchange

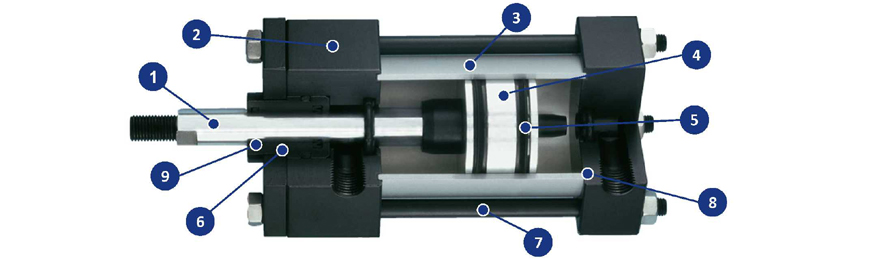

American Cylinder’s TR Series interchangeable NFPA cylinder line offers conventional tie rod dimensions and mounting styles. They are available in: 1-1/2", 2", 2-1/2", 3-1/4", 4", 5", 6", and 8" bore sizes

1

Hard Chrome-Plated & Polished Piston Rod

Minimum yield of 100,000 PSI. High tensile strength steel provides for reliable performance and longer rod seal life.

2

Solid Anodized Alumin Alloy Heads

Designed for corrosion resistance and extra strength.

3

Aluminum Alloy Tube 6063-T832

PSI of 35,000. Hard coated I.D. resists scoring and wear.

4

Aluminum Alloy Piston

Provides excellent characteristics against the hard coated I.D. cylinder body.

5

Seals

Piston and rod seals are of a U-Cup design for low friction with standard and magnetic field piston options. Air/Oil piston option adds a Quad-ring seal to the piston. Buna-N (B) material is standard, FKM (V) material should be used when high temp (over 200°F) or chemical resistance is required

6

Cast Iron Rod Bushing

Compatible with the hard chrome plated rod. Close grain cast iron bearing provides maximum wear resistance for long life.

7

Tie Rods

High strength steel to maintain compression on tube end seals

8

Tube End Seals

Fiber and nitrile base elastomer acting as a binder for positive sealing.

9

Quad Ring Wiper

Wipes the rod clean and keeps out contamination.

10

Factory Lubricated

Cylinder bodies are lubricated with Teflon-based compound.

11

Pretested

The quality of each cylinder is assured by testing each unit for leakage prior to shipment. Quality control provides added value to American Cylinders.
