Pivot Brackets


One piece cast aluminum alloy bracket for use on American Cylinder's Hard Coated Aluminum Body cylinders except 2-1/2'' bore. Each pivot bracket comes with a pivot pin and a cotter pin.

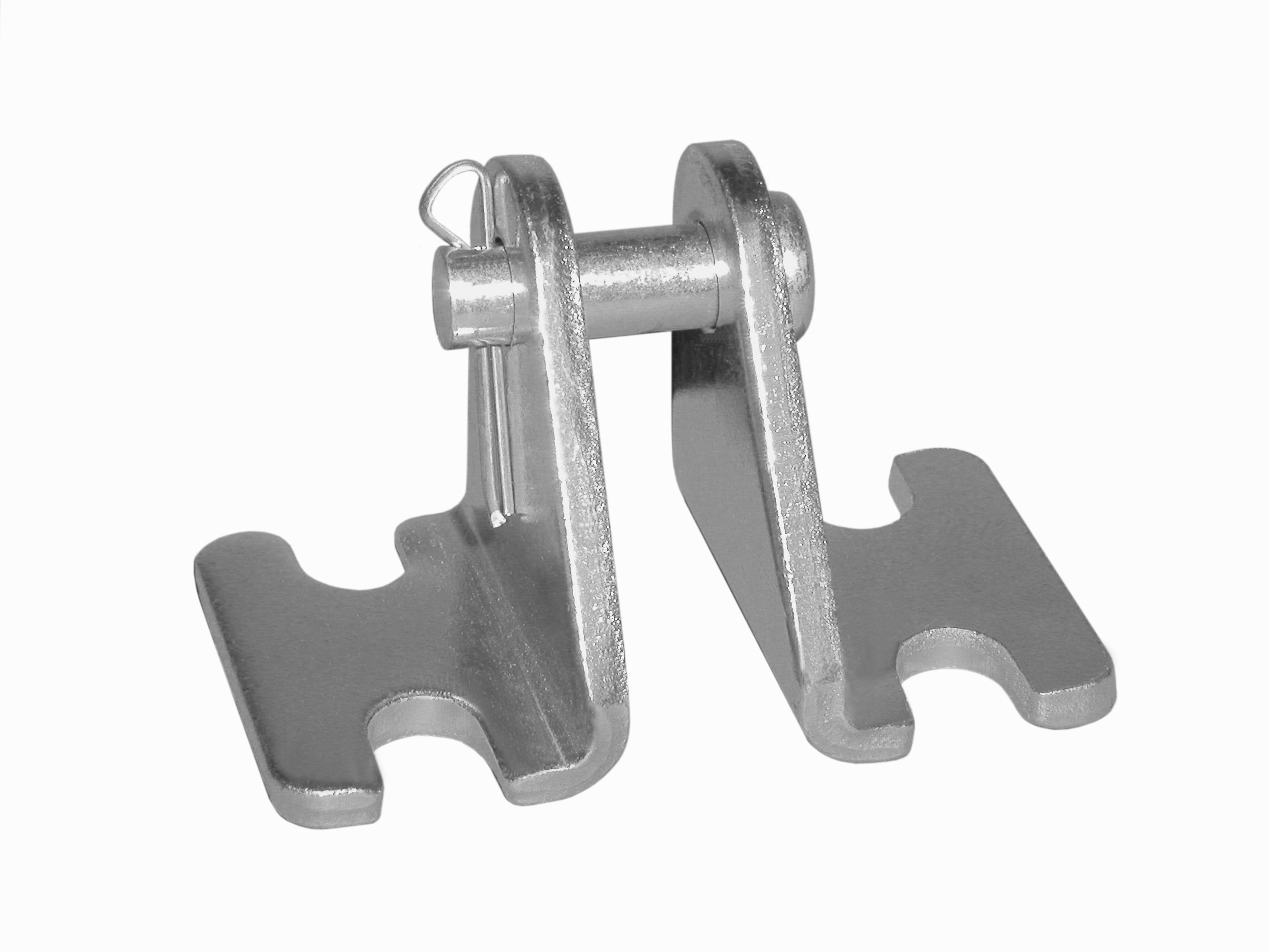

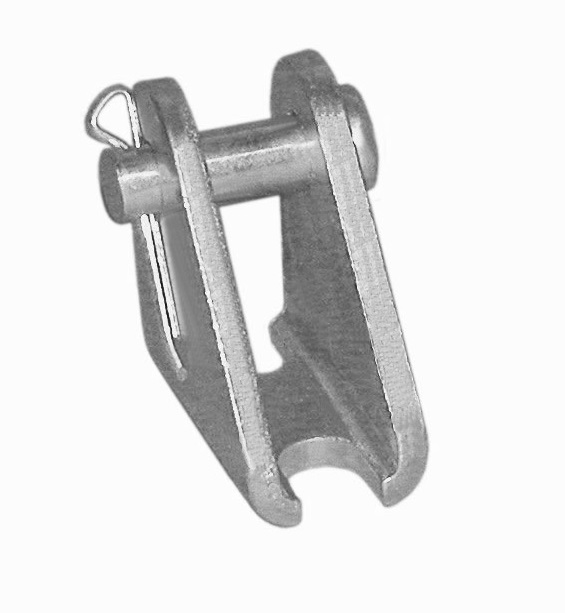

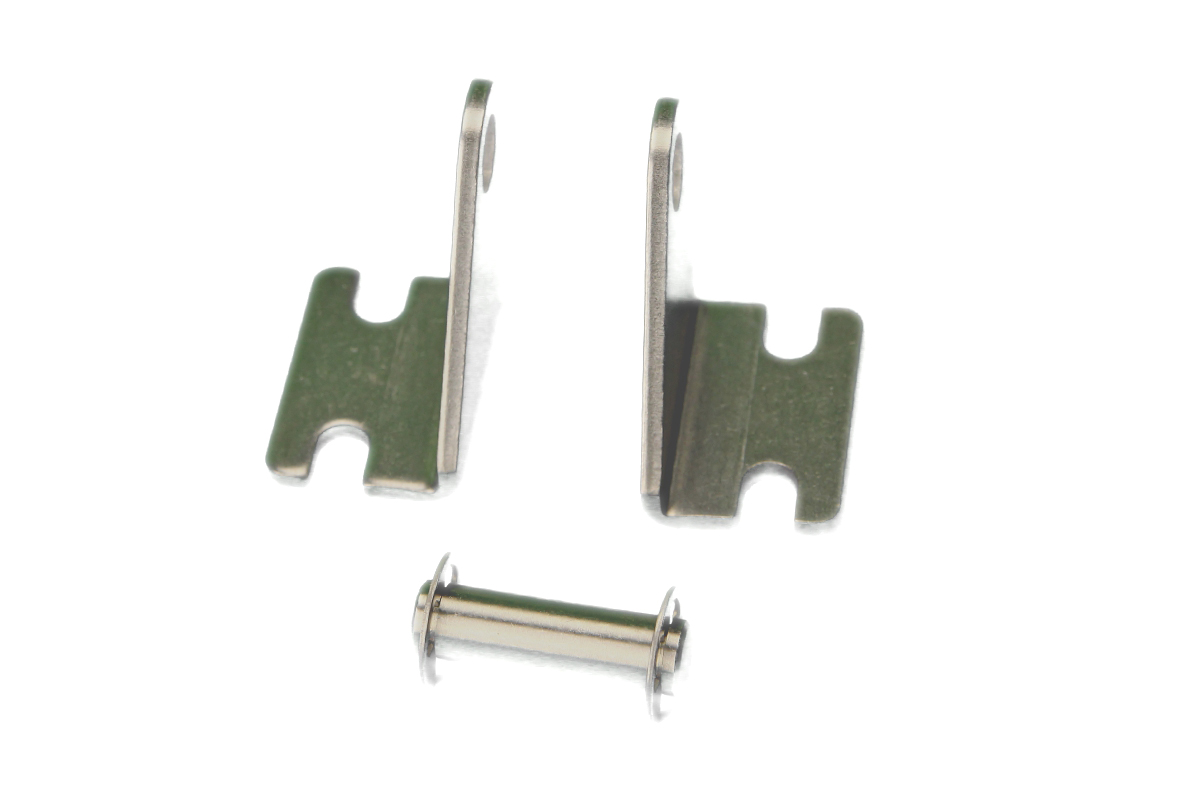

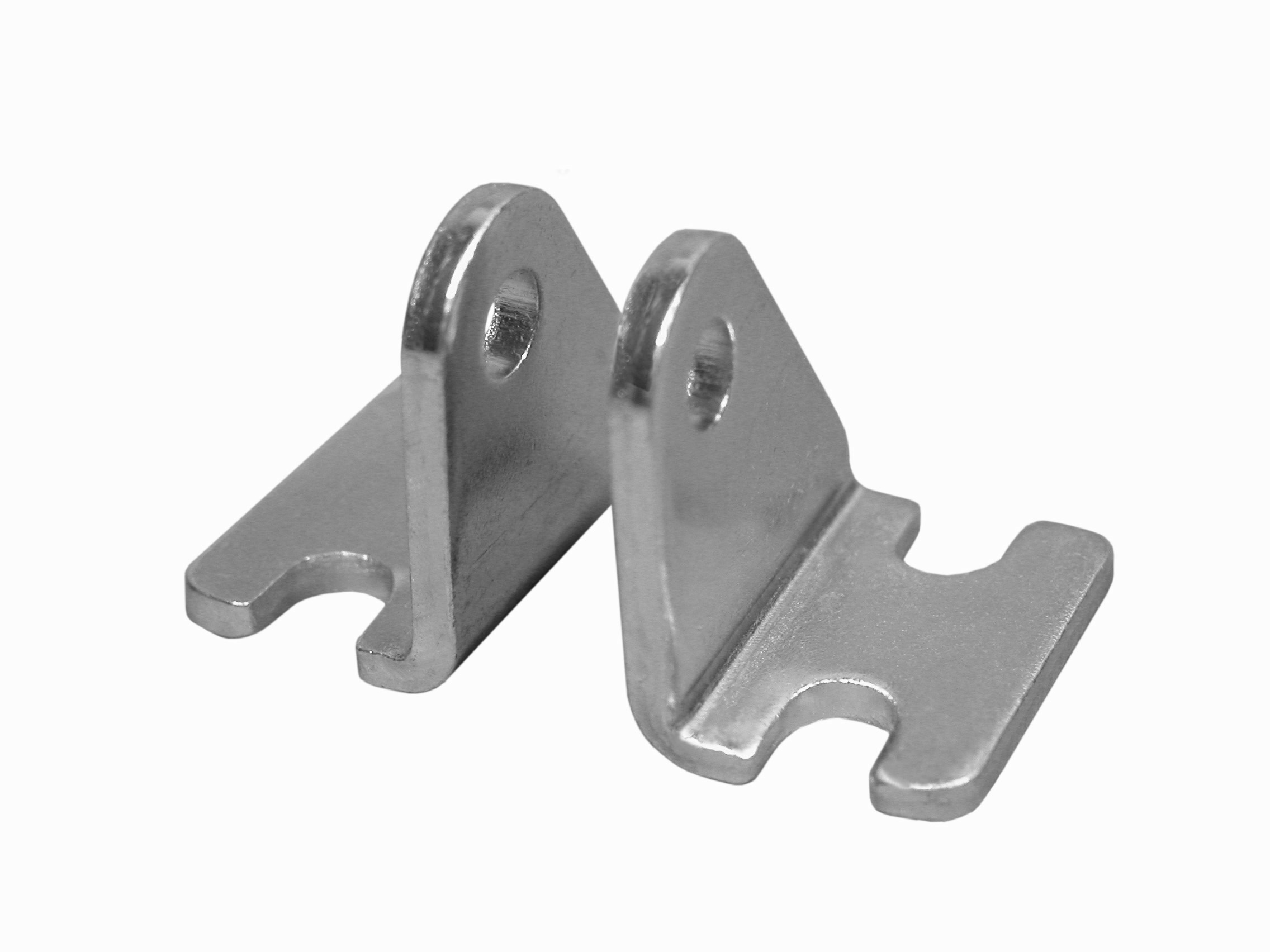

Two piece zinc plated Pivot Bracket stampings are available for the 2-1/2" Aluminum Series cylinder models. The same two piece design is also used on all the other Stainless Steel body cylinder models.  Stainless Steel material Pivot Brackets are offered as standard accessory items in the Corrosion Resistant CR-Series.


Pivot Bracket
two piece pivot bracket

Pivot Bracket Gallery
